DTⅡ型摩擦調心規格帶? 寬：B=500—B=1000帶??寬名??稱圖??號名??稱圖??號規? 格槽鋼角鐵中心距B=500摩擦上調心35°DTⅡ01C1111?槽形托輥DTⅡGP1101?89×200×228L:63×63×4???&n
| DTⅡ型摩擦調心規格 | |||||||
| 帶 寬：B=500—B=1000 | |||||||
| 帶 寬 | 名 稱 | 圖 號 | 名 稱 | 圖 號 | 規 格 | 槽鋼角鐵 | 中心距 |
| B=500 | 摩擦上調心35° | DTⅡ01C1111 | 槽形托輥 | DTⅡGP1101 | ?89×200×228 | L:63×63×5 [:120×53×5.5 | 740 |

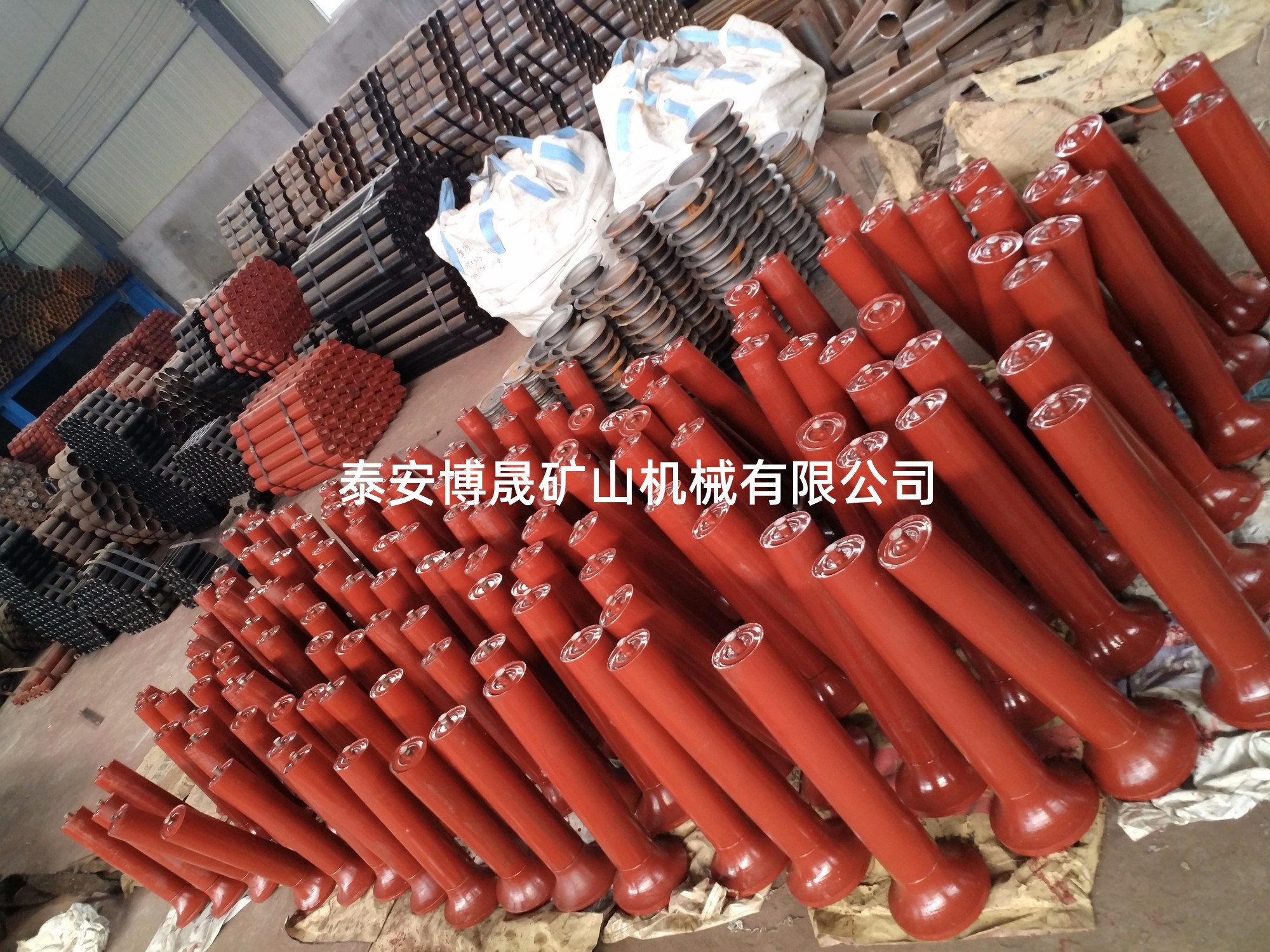

| 摩擦托輥 | DTⅡ01C1111.1 | ?89××230×258 | |||||
| 摩擦下調心 | DTⅡ01C2811 | 摩擦托輥 | DTⅡ01C2811.1 | ?89×323×351 | |||
| B=650 | 摩擦上調心35° | DTⅡ02C1111 | 槽形托輥 | DTⅡGP1102 | ?89×250×278 | L:63×63×5 [:120×53×5.5 | 890 |
| 摩擦托輥 | DTⅡ02C1111.1 | ?89××280×308 | |||||
| 摩擦下調心 | DTⅡ02C2811 | 摩擦托輥 | DTⅡ02C2811.1 | ?89×398×426 | |||
| B=800 | 摩擦上調心35° | DTⅡ03C1111 | 槽形托輥 | DTⅡGP1103 | ?89×315×343 | L:63×63×6 [:120×53×5.5 | 1090 |
| 摩擦托輥 | DTⅡ03C1111.1 | ?89××323×351 | |||||
| 摩擦下調心 | DTⅡ03C2811 | 摩擦托輥 | DTⅡ03C2811.1 | ?89×473×501 | |||
| B=800 | 摩擦上調心35° | DTⅡ03C1122 | 槽形托輥 | DTⅡGP2203 | ?108×315×343 | L：63×63×6 [：120×53×5.5 | 1090 |
| 摩擦托輥 | DTⅡ03C1122.1 | ?108××342×376 | |||||
| 摩擦下調心 | DTⅡ03C2822 | 摩擦托輥 | DTⅡ03C2822.1 | ?108×488×522 | |||
| B=1000 | 摩擦上調心35° | DTⅡ04C1123 | 槽形托輥 | DTⅡGP2304 | ?108×380×414 | L:80×80×7 [:120×53×5.5 | 1290 |
| 摩擦托輥 | DTⅡ04C1123.1 | ?108×405×439 | |||||
| 摩擦下調心 | DTⅡ04C2823 | 摩擦托輥 | DTⅡ04C2823.1 | ?108×590×624 | |||
| B=1000 | 摩擦上調心35° | DTⅡ04C1133 | 槽形托輥 | DTⅡGP3304 | ?133×380×414 | L:80×80×7 [:120×53×5.5 | 1290 |
| 摩擦托輥 | DTⅡ04C1133.1 | ?133×412×446 | |||||
| 摩擦下調心 | DTⅡ04C2833 | 摩擦托輥 | DTⅡ04C2833.1 | ?133×590×624 | |||
